Install Ready Solar Carport Systems for Your Home or Business
The Hercules solar carport system from Symtech Solar is a pre-engineered, ready-to-install on-grid PV solution that turns parking areas into efficient solar generation assets while providing vehicle shading and weather protection. It maximizes land use by converting existing or new parking spaces into dual-purpose structures, eliminating the need for dedicated solar land and offering an economical alternative to conventional shading canopies. Our EPC team can support your project.
This cross-platform design integrates with MEGATRON battery energy storage systems (50–150 kW BESS paired with 50–100 kW PV) and EV charging infrastructure. Configurations include single-steel-column or double-aluminum-column frames for structural durability, corrosion resistance and wind load compliance. Pre-assembled legs, pre-cut beams and zero on-site cutting or welding enable rapid erection with minimal civil works.
Scalable
5.5 kW to MW
2-Car Coverage to Commercial
Installation
Zero Welding
No On-Site Cutting
Frame Options
Steel or Aluminum
Single or Double Column
Key Technical Features
Scalable
Scalable from 5.5 kW STC (2-car coverage) to multi-MW setups for commercial and industrial sites.
High-Efficiency Modules
High-efficiency crystalline modules (poly or mono, 260–380 W per panel).
Inverters & Monitoring
Single- or three-phase inverters with WiFi monitoring for real-time performance tracking.
Durable Components
UV-resistant wiring, IP66 DC/AC disconnects, grounding systems and safety labeling.
Structural Design
Single-steel-column or double-aluminum-column frames provide structural durability, corrosion resistance and wind load compliance, with pre-assembled legs and pre-cut beams for zero on-site cutting or welding.
Estimated Output
Estimated output based on 4 kWh/m²/day average sunshine (e.g., 11 kW STC: ~1138 kWh/month; 55 kW STC: ~5688 kWh/month).
These grid-tie solar carport systems are compatible with most electric vehicle charging stations, making them an innovative, clean and environmentally friendly fuel platform. Turn your existing parking lot into a solar energy generating system and provide shaded parking at the same time. It is a win-win design for almost any parking area.

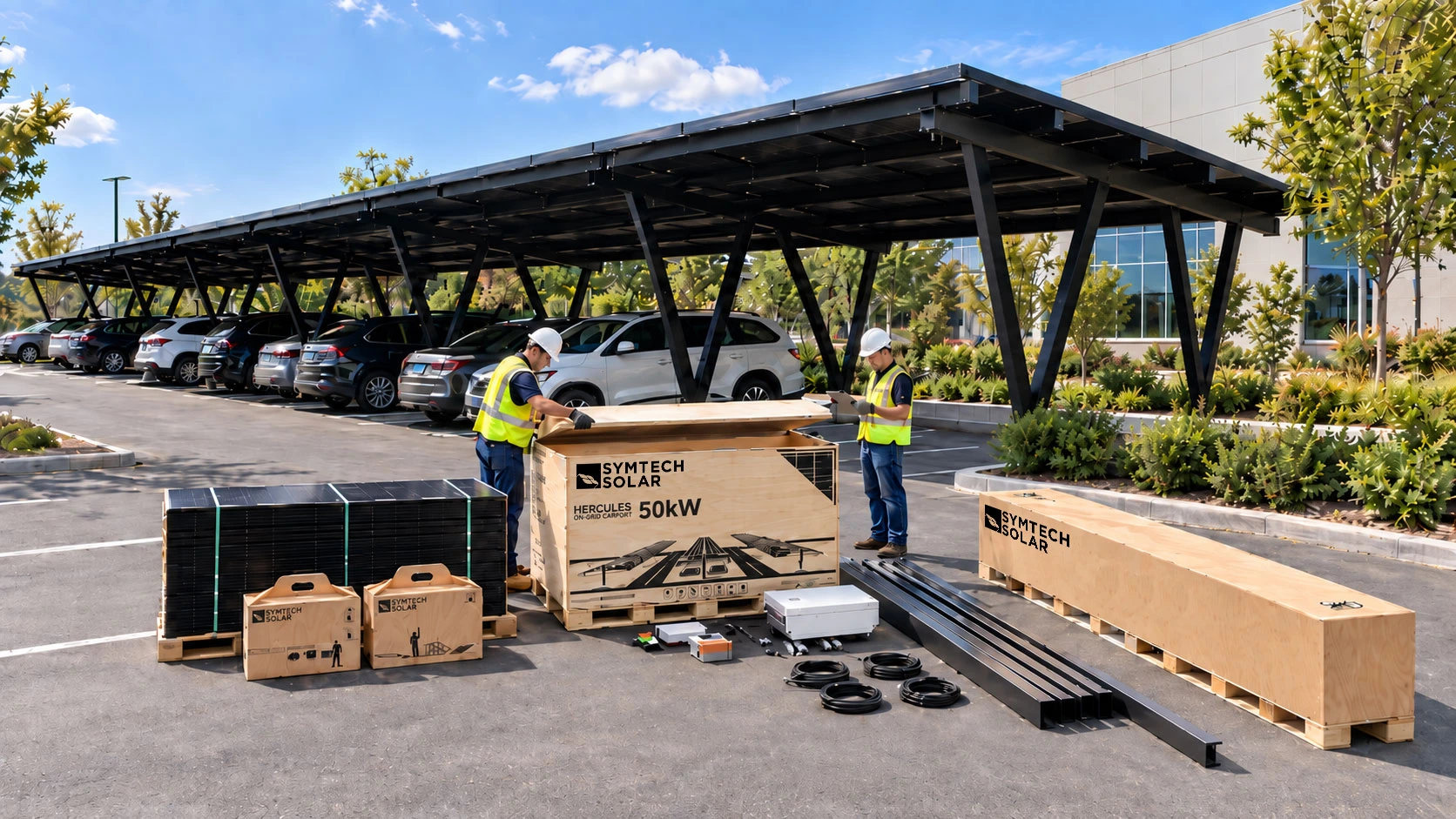

Hercules solar carports are designed to be easily retrofitted into new or existing areas, and are designed and shipped to fit precisely into the environment as an elegant, multi-use solar structure. Installation is simple thanks to a pre-assembled leg system and pre-cut beams. Each system is designed to be erected with zero cutting and a minimal parts count.
Carport systems can also be paired with battery energy storage systems for easy EV charging station hook-ups and better performance of both the PV and EV charging systems. Learn more: How Energy Storage Can Solve the Renewable Energy Generation Issue. Prefer rooftop or ground-mount? See Atlas commercial solar kits.
Custom solar carport kits for bulk orders.We regularly customize solar carport kits to the customer’s needs, including system size, module and inverter selection, column and frame configuration and grid voltage. Factory-configured kits are packed and shipped as one order for fast installation by installers, distributors and developers. Learn more about our EPC services, or click the Inquire Now button below for a custom quote.

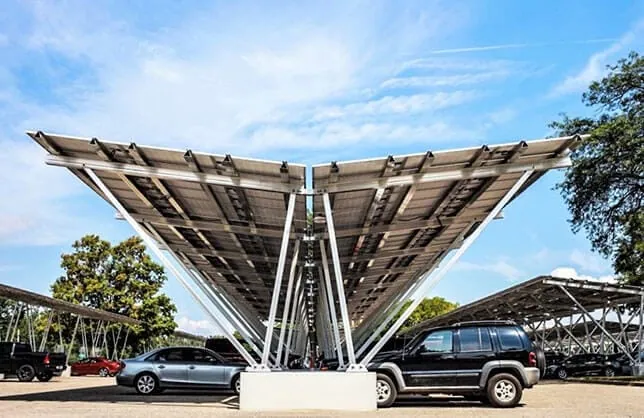

Solar Canopy and Solar Carport Solutions
Hercules solar carports and solar canopies turn a typical, non-productive parking lot or walkway into a cost-effective solar power plant. With no field welding, drilling or other on-site fabrication, Hercules solar carports are ready to erect upon delivery, manufactured and designed for simplicity, practicality and peace of mind.
Common Applications
- Existing parking areas looking to add value
- Businesses that want to offset power costs
- Schools looking to reduce their energy cost
- Residential homes looking for due use solar and parking
- Housing developers looking to add value to their properties
- Commercial centers and malls looking to offset power costs and add shaded parking for their customers
Carport Benefits
- Multi functionality including solar energy and covered parking
- Simple and elegant design
- Easily scalable from 5kW to 5MW
- Increases the value of your parking area
- Can be integrated with electric vehicle charging stations

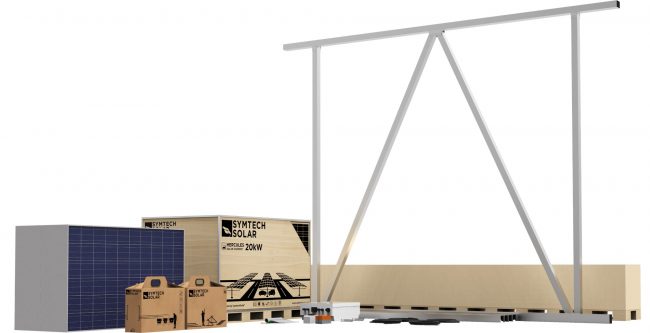

What’s Included in the
Carport Solar Kit
Our Hercules PV Systems are available in multiple layouts and can be designed and engineered for your specific site characteristics. Each kit is install ready and includes all solar the solar carport components necessary for a long term and successful dual use PV system.
Hercules Solar Carport PV Kits include:
- Crystalline silicon solar panels in poly-crystalline or mono-crystalline
- Inverters in single or three phase configuration
- All aluminum or steel solar carport structure
- DC and AC safety disconnects for added functionality
- Solar wire designed for extreme weather and UV
- Ground wire and PV array grounding system
- Wire management system to keep everything neat and tidy
- WiFi system monitoring so you can check performance anytime
- System safety labels for better user safety and awareness
- Installation manual for the entire solar kit
- Commissioning and annual inspection documents
- Electrical 3 line & mechanical drawings
Don’t see the size you want? Contact our engineering team and let us custom design a system for you. We can design and build almost any size and or configuration.

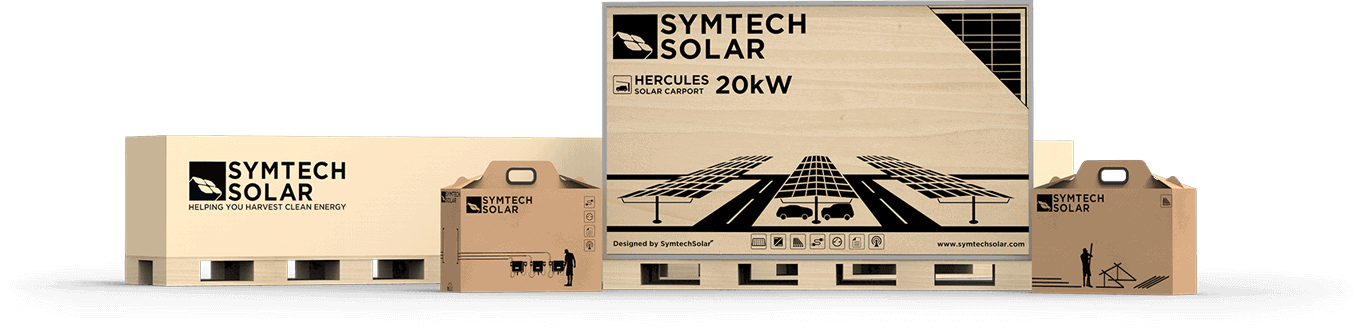

Sympack Technology
The difference is clear, get better results with our all in a box packaging solutions. Symtech Solar’s heavy-duty ISPM15 Compliant crate design not only protects the Hercules solar carport kits contents during international shipping but also ensures that the solar carport kits arrive to their installation site undamaged and ready to install. Larger solar carport systems are shipped in sea containers in an optimized format making installation more organized and easy to handle
Product Specs
1.7 x 1.1 x 1
4 x 0.6 x 0.6
Size (m)
750
Weight (kg)
2
Total Boxes
1.7 x 1.1 x 1
4 x 1.2 x 0.6
Size (m)
1500
Weight (kg)
3
Total Boxes
1.7 x 1.1 x 1
4 x 1.2 x 1.2
Size (m)
2400
Weight (kg)
5
Total Boxes
1.7 x 1.1 x 1
4 x 1.2 x 1.2
Size (m)
7500
Weight (kg)
1
20'Container
*Based on 0.85% system derating (formula = DC Power x peak sunshine hours/year x derate factor) (GHI = Global Horizontal Irradiance)
