Containerized Battery Energy Storage System
In renewable energy projects, containerized Battery Energy Storage Systems (BESS) serve as the standard for commercial, industrial, and utility-scale applications. These pre-engineered, factory-assembled units integrate high-performance LFP lithium batteries and power electronics within standard ISO shipping containers (10, 20, or 40 ft), enabling plug-and-play deployment with reduced on-site civil works and commissioning time from months to days or weeks.
What is a Containerized Battery Energy Storage System (BESS)?
A containerized BESS is a fully integrated, transportable energy storage solution housed in an ISO container. All core components – LFP battery modules, bidirectional Power Conversion System (PCS), advanced Battery Management System (BMS), thermal management (air or liquid cooling), fire suppression, and control systems are factory-installed, wired, and tested (FAT) prior to shipment.
Core Technical Components
- LFP Battery Racks: Lithium Iron Phosphate cells rated for ≥6,000 cycles at 80% Depth of Discharge (DoD), with high thermal runaway resistance
- Power Conversion System (PCS): Bidirectional inverters (125–1600 kW per container) supporting grid-following, grid-forming, and black-start modes
- Advanced BMS: Cell-level monitoring of voltage, temperature, and State of Charge (SOC), with active balancing and multi-layer protection
- Thermal Management: Liquid or forced-air cooling to maintain internal 15–35 °C range in ambient conditions from -30 °C to +50 °C
- Safety & Fire Suppression: Aerosol or Novec 1230 systems, gas/smoke/heat detection, and automatic shutdown logic compliant with NFPA 855
Key Advantages of Containerized Design
- Factory quality control, pre-commissioning, and testing to minimize on-site risks and errors
- Scalability from 261 kWh to multi-MWh via parallel container connections with synchronized BMS
- IP54+ weatherproof enclosure suitable for harsh environments
- Transportable and relocatable asset with minimal foundation (concrete pad + crane placement)
- Reduced installation labor, civil costs, and project timelines for faster ROI
Primary Applications
- Solar PV + storage hybrids for peak shaving, self-consumption, and export limiting
- Utility frequency regulation, voltage support, and energy arbitrage
- Commercial & industrial demand-charge reduction and backup power
- Off-grid/microgrid supply for mining, islands, and remote communities
- Renewable energy firming in variable generation scenarios
Symtech Solar Containerized BESS Solutions

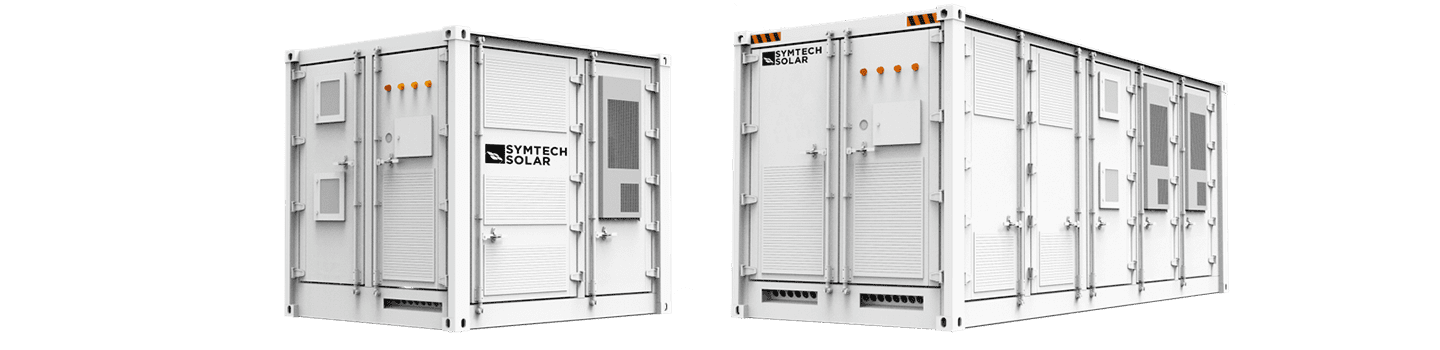

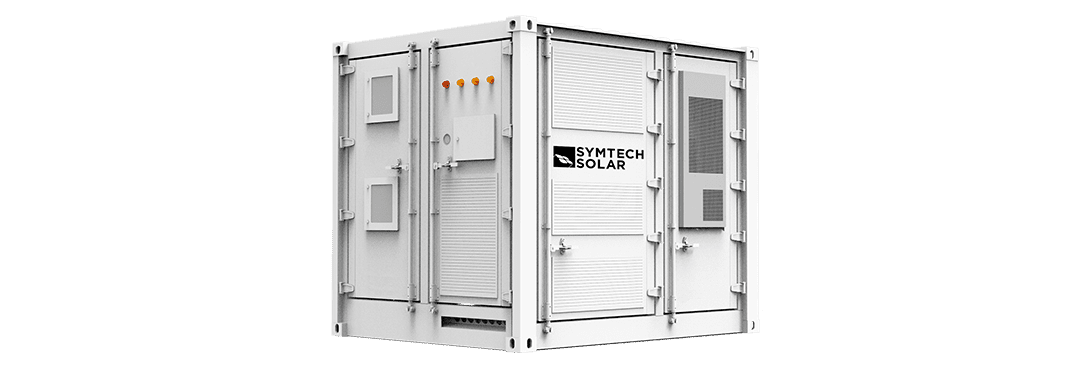

The Megatron series offers factory-direct, pre-certified containerized LFP BESS platforms compliant with UL 9540 (system), IEC 62619 (cell), IEC 63056 (pack), and IEEE 1547 (grid interconnection). Configurations range from 50 kW / 75 kWh to 1.6 MW / 3008 kWh, with air-cooled or liquid-cooled options for optimal RTE (>90% in liquid-cooled variants) and performance in high-cycle or hot-climate deployments. BESS only containers can be paired with MV Skid PCS/Transformer units. An example deployment can be found here: MEGATRON – Large Scale BESS Project, 3.125MW x 12.5MWh
Technical Benefits and Deployment Considerations
Containerized BESS accelerate timelines through full factory integration, reducing assembly errors and wiring issues. Deployment requires only basic foundation and crane access. Sizing begins with load profile analysis (peak kW demand, required kWh capacity, discharge duration). Key parameters include 80 to 95% DoD target for cycle life, 0.5C continuous / 1C peak C-rate, and liquid cooling for >40 °C ambient. Parallel scaling supports up to 10+ containers for multi-MWh systems.
Contact the Symtech Solar engineering team for project-specific sizing, ROI/LCOE modeling, custom configurations, or factory-direct quotes. Engineered and delivered worldwide.
